SOCAR Common Guide
1. Refueling
2. Overview of Interior Convenience Features/Buttons
Main Features
1. Gear Shifting & Electronic Parking Brake
2. Side Mirrors
3. Steering Wheel Remote Control
4. Trunk Usage
※ Once you have selected the item, you will be moved to the appropriate content.
※ Some features may vary depending on vehicle options and year.
Check it out first!
▶ How do I set up the navigation language?
You can customize system settings in General Settings, such as the time and date, the system language, and more.
※ Depending on the vehicle model or specifications, displayed screens and available options may vary.
Please follow these steps to change the language:
1. Press [Setup] ▷ [General] ▷ [Language] and select your language.
※ In Korean, [설정] ▷ [일반] ▷ [언어/Language]
2. When the change is completed, a pop-up window will appear telling you the system language has changed.
It may take a while for the system to apply the selected language.
▶ How to Start the Engine
The start button is located behind the right side of the steering wheel. To start the engine, make sure the gear is in 'P' (Park), press the brake pedal, and then press the start button.
▶ How to Release the Parking Brake
Please check the parking brake. To release the parking brake, pressing the front button of the parking brake, lift the parking brake briefly and then lower it. (See more details)
▶ How do I connect to Bluetooth? / How do I connect to Wi-Fi?
If your vehicle is equipped with a Bluelink or UVO navigation system, please follow these steps to connect Bluetooth: (See more details)
1. Press [Setup] ▷ [Device Connections] ▷ [Bluetooth] ▷ [Bluetooth Connections] ▷ [Add New] button in sequence.
2. In your phone’s Bluetooth settings, find and select the vehicle name to connect via Bluetooth.
※ If you cannot add a new Bluetooth device, delete all previously added devices in vehicle and try again.
Socar Wi-Fi password is Safedrive.
▶ How to open the fuel cap
If there is a fuel cap button located at the bottom of the driver's door, press the button to open the fuel cap. If there is no button, press the fuel cap itself to open it.
The fuel cap is located on the left side (driver's side). After refueling, press the fuel cap to securely close it.
▶ How to use a self-service gas station.
When using a self-service gas station and choosing the "fill up" option, an amount of approximately 150,000 KRW will be pre-authorized regardless of the actual fuel amount.
After fueling is complete, the final charge will be adjusted to the actual amount of fuel dispensed. The pre-authorized amount will be cancelled only after the actual fuel amount has been charged.
If the card is removed during fueling, the fuel amount may not be accurately charged. Please make sure to check the following points.
※ Do not remove the card until fueling is complete.
※ Be sure to check the receipt to confirm that the final amount has been correctly charged.
※ If you remove the card in the middle of fueling or if the amount is not charged correctly, please inform the gas station staff immediately.
※ Self-Service Fueling Procedure
| Select fueling amount ▷ Pre-authorization ▷ Actual fueling amount charged ▷ Pre-authorization cancelled ▷ Check receipt ▷ Remove card |
[ Common Guide ]
1. Refueling

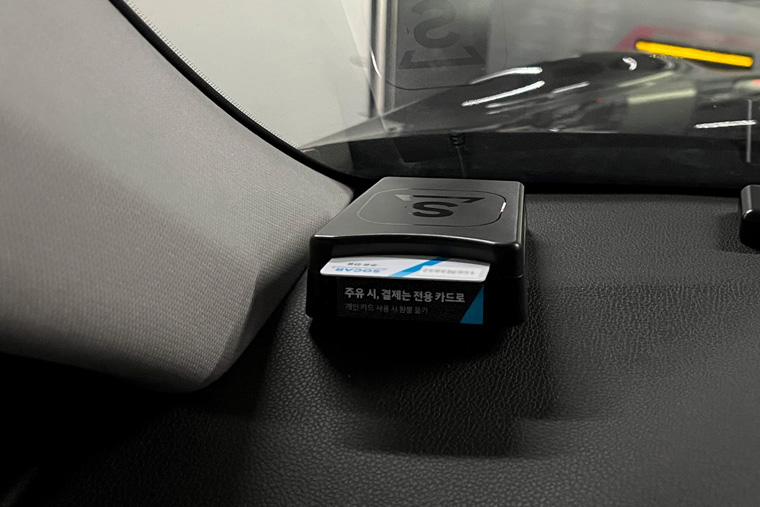

The card located inside the vehicle is considered the property of Socar.
Please be advised that unauthorized use of this card may result in legal liability.

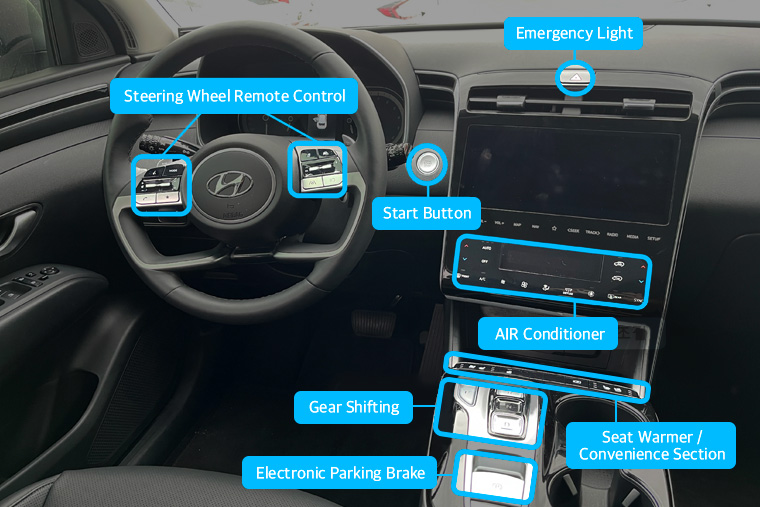

2. Check internal convenience/Button
[Main Features]

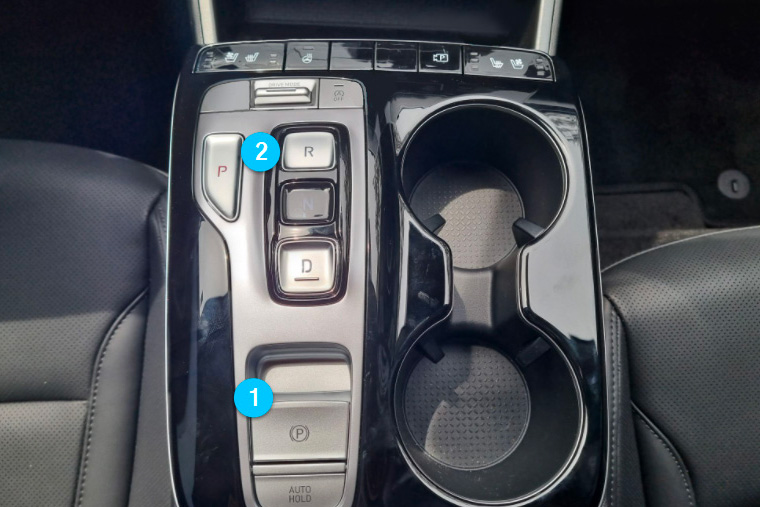

1. Gear Shifting & Electronic Parking Brake
① Electronic Parking Brake
The electronic parking brake is located at the lower rear side of the left of the steering wheel or at the bottom of the gear and functions similarly to the handbrake.
• To activate: While the vehicle is stopped, press the brake pedal and lift the button up.
• To deactivate: While pressing the brake pedal, lower the button.
※ Before driving, please make sure to check whether the electronic parking brake is released.
② Gear Shifting
When shifting gears, press the brake pedal while operating the electronic gear shift button.

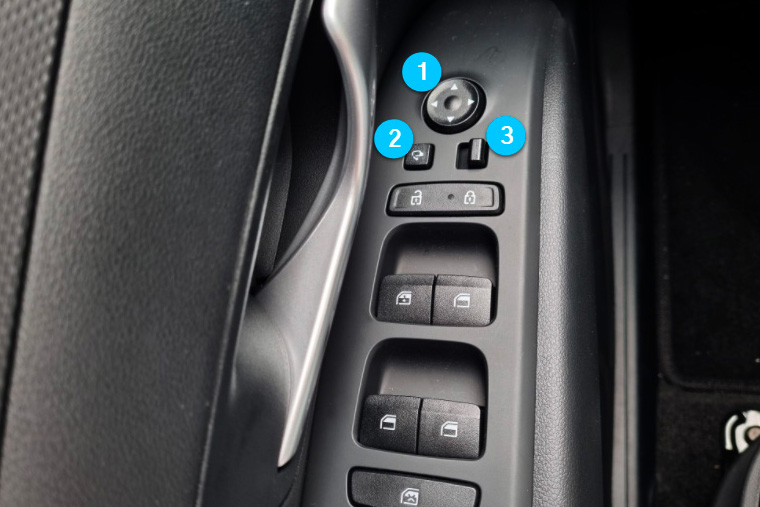

2. Side mirrors
① You can fold or unfold the side mirrors. It operates regardless of the ignition status.
② Side mirror adjustment switch.
③ Select which mirror to adjust.

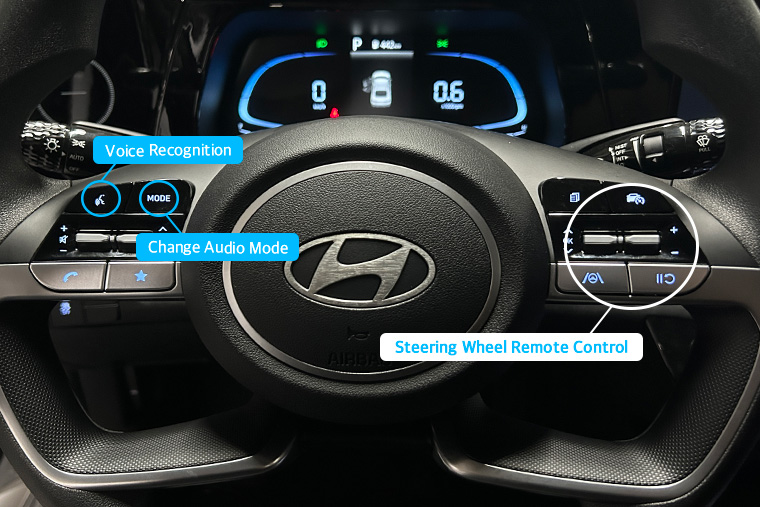

3. Steering Wheel Remote Control

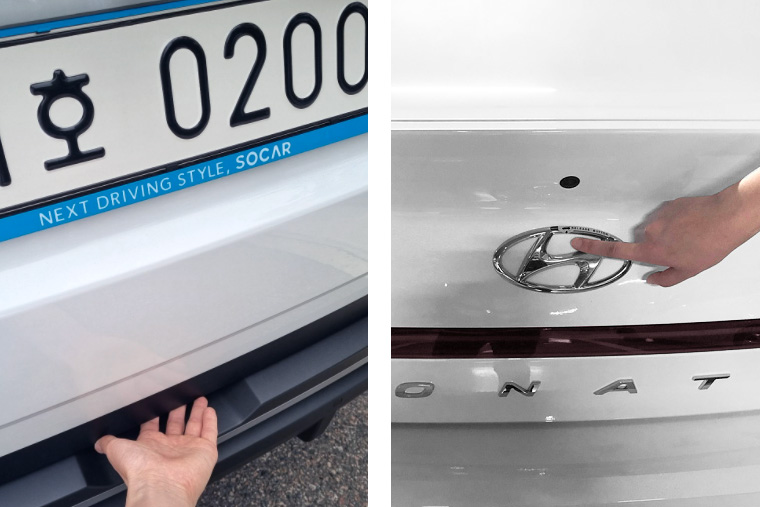

4. Trunk Usage
Insert your hand into the trunk handle and press inward to open the trunk.
※ You must unlock the door to open the trunk.
